Skyjack SJ16 – 6.75m – Low Level Access


Skyjack SJ16 – 6.75m – Low Level Access

The Skyjack SJ16 SJ12 self propelled vertical low level access mast lifts provide a compact footprint superior maneuverability. Low level access machines operate very well in tight workspaces with a high degree steer angle that allows for superior functionality flexibility by offering zero inside turning radius.

Both models feature a 0.41m traversing platform, providing increased access the ability to reach over potential obstacles. A unique slide away platform provides easy access to components, when raised or in the stowed position.

Skyjack’s low level access stard colour coded numbered wiring system with hard-wired relay based controls help to ensure both the SJ12 SJ16 live up to Skyjack’s reputation for quality serviceability.

Specification Overview

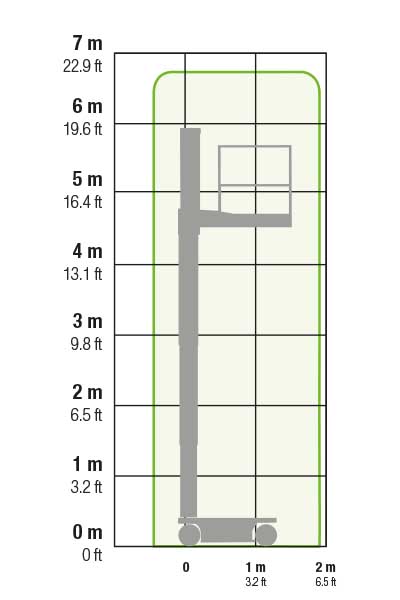

Maximum Working Height 6.75m
Maximum Platform Height 4.75m
Overall Width 0.76m
Stowed Length 1.37m
Stowed Height 1.79m
Platform Capacity 227kg
Gross Machine Weight 971kg
Tyres Non-marking

To hire this machine, or for more information.

   0845 457 0000      Contact form


  • Drivable at full height.
  • Variable speed, front two wheel hydraulic drive.
  • Zero inside turning radius.
  • Dual holding brakes.
  • Proportional controls.
  • 0.41m Traversing platform.
  • 24V DC power source.
  • Low voltage battery protection.
  • 30% gradeability.
  • Solid rubber, non-marking tyres.
  • Pothole protection system.
  • Wiring for AC outlet at platform.
  • 12.5 m/s (28 mph) wind rating (SJ12 only).
  • Tilt alarm with drive & lift cut-out.
  • Lanyard attachment points.
  • Operator horn.
  • Lift rings/tie downs.
  • Full height spring hinged gate.
  • Relay based control system.
  • Color coded and numbered wiring system.
