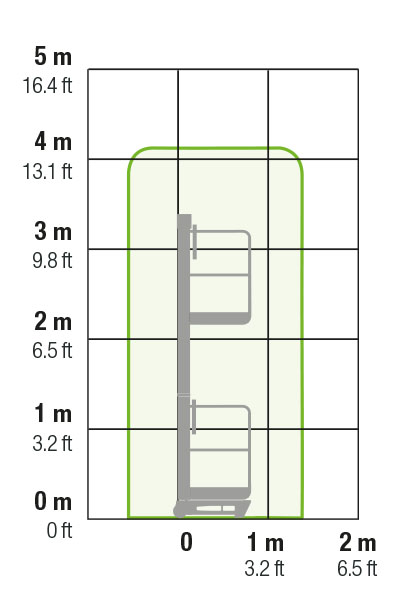

Working Envelope

Pop Up IQ7 LIFT PRO – 4 ACTIVe – 4.1m – Low Level Access

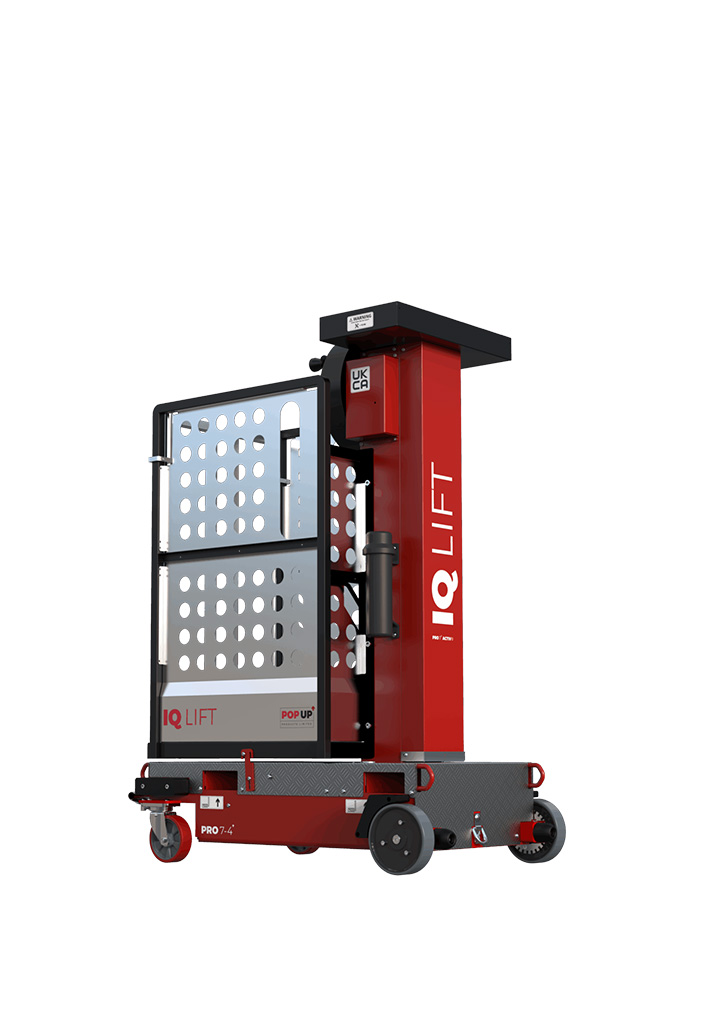

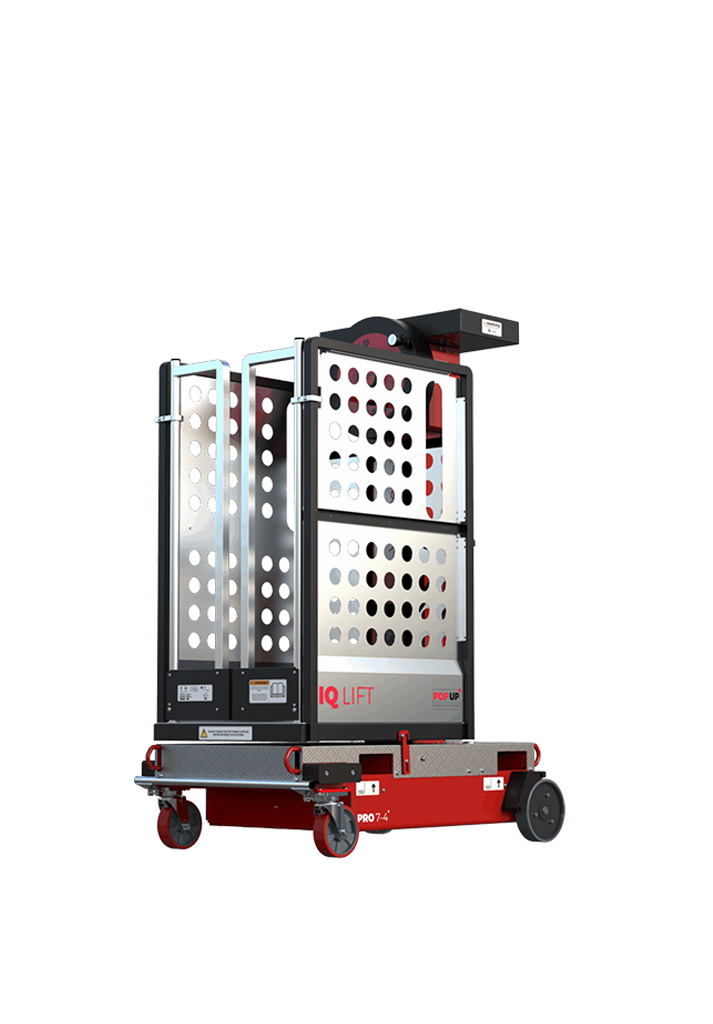

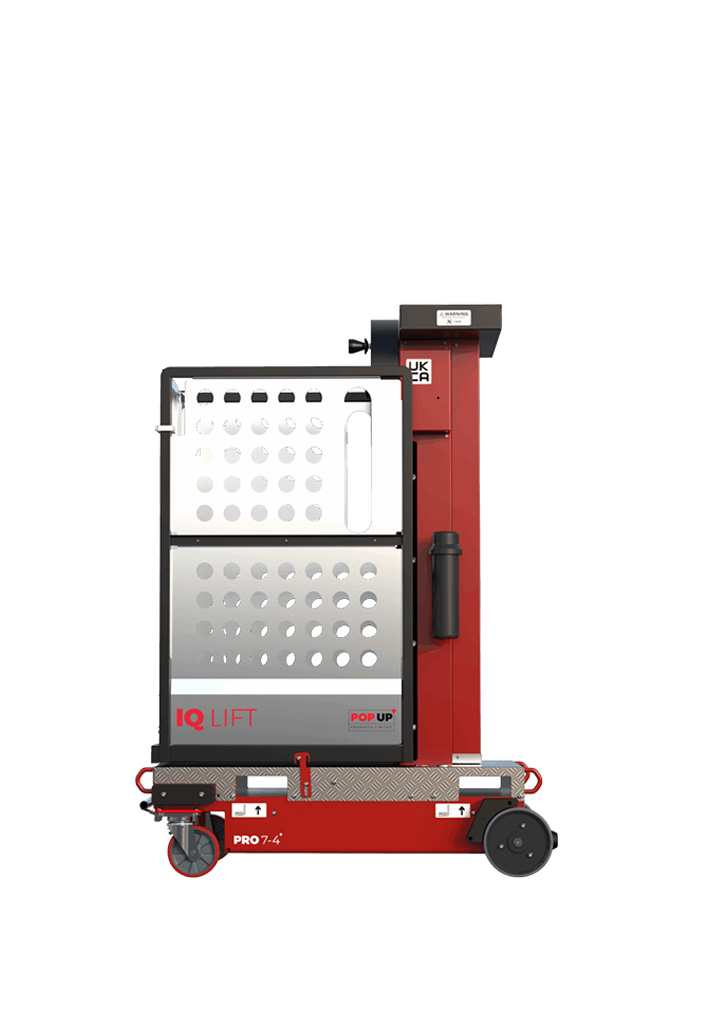

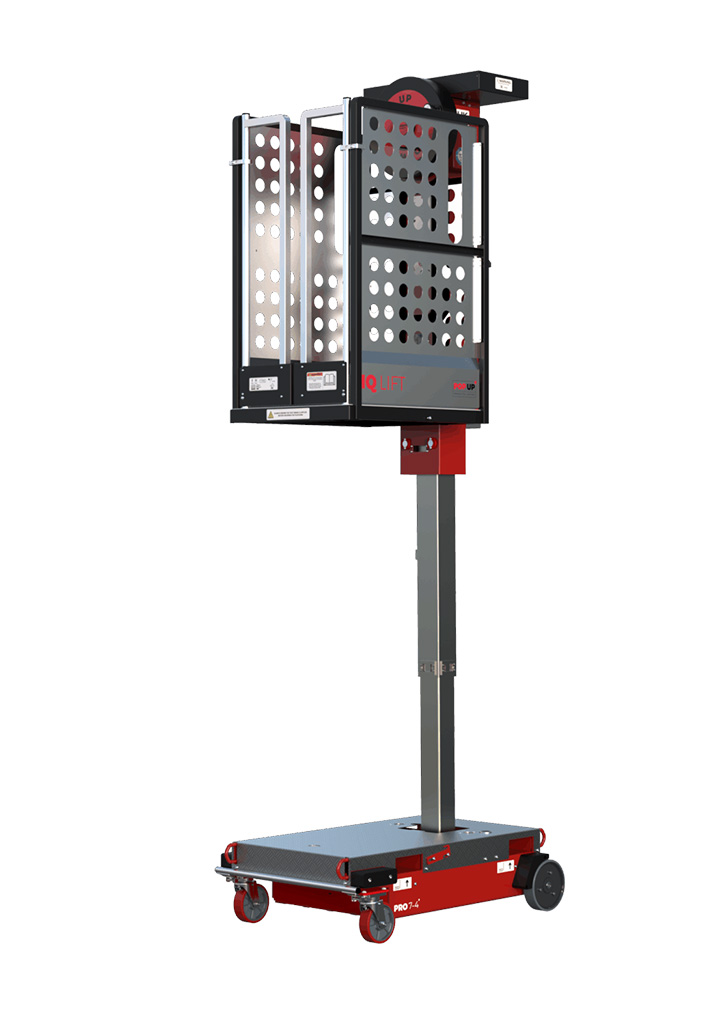

The IQ LIFT PRO 7 – 4 ACTIVe is a versatile, human-powered mast lift designed to provide a safer and more efficient alternative to ladders for indoor maintenance and access tasks.

This lightweight, manually operated platform is ideal for use in environments such as hospitals, food production, pharmaceutical plants, and construction sites, enabling operators to elevate smoothly and safely without the need for batteries or charging.

The IQ LIFT PRO 7 – 4 ACTIVe can reach a maximum platform height of 2.10m and can be raised and lowered in 18/20 seconds. Auto brake will activate when the machine has the travel lock engaged and has been raised slightly, this ensures the machine won’t move whilst being transported to site. The platform has a built toe-board and has a safety device located on the side of the machine which can be used to lower the basket in case of emergency.

Key features include:

  • Anti-climb guarding around the platform area for enhanced safety
  • No batteries or charging required, ensuring low maintenance and operational costs
  • Quick and smooth elevation for productive operation
  • Low platform entry for easy access with single handed gates
  • Lightweight design for easy manoeuvrability
  • Travel and maintenance lock
  • Built-in toe board to prevent small objects from falling and protect people below
  • Anti-surf blocks and manual brake for additional stability and safety

The perfect low level hire solution for a wide range of indoor access needs.



Specification Overview

Maximum Working Height 4.10m
Maximum Platform Height 2.10m
Overall Width 0.70m
Stowed Length 1.20m
Stowed Height 1.68m
Platform Capacity 125kg
Gross Machine Weight 274kg
Platform Dimensions 0.68(L) X 0.59(W)
