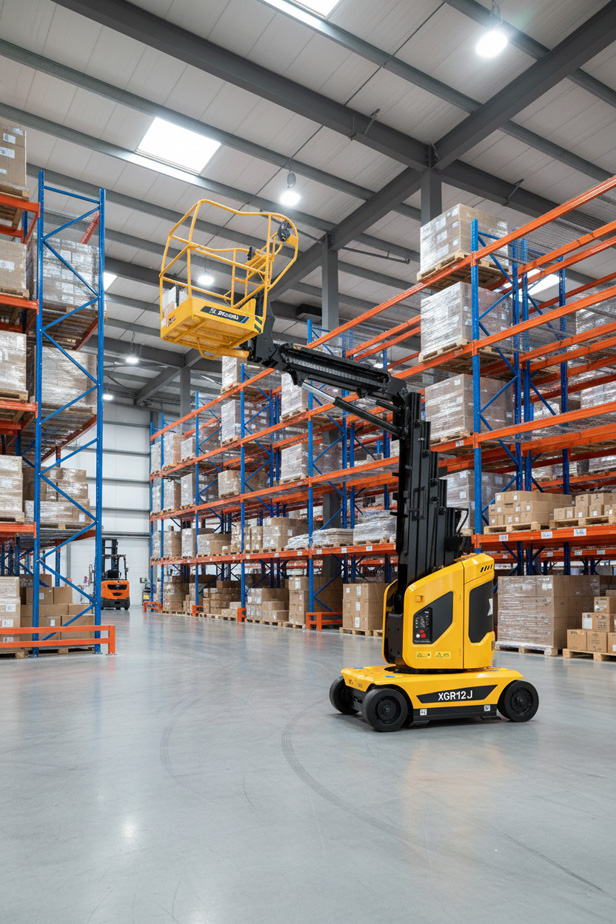

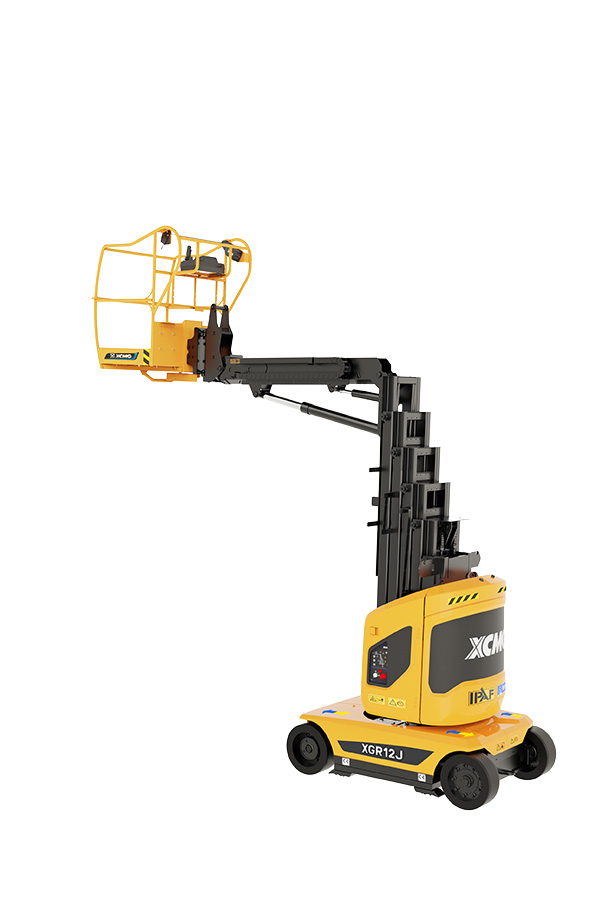

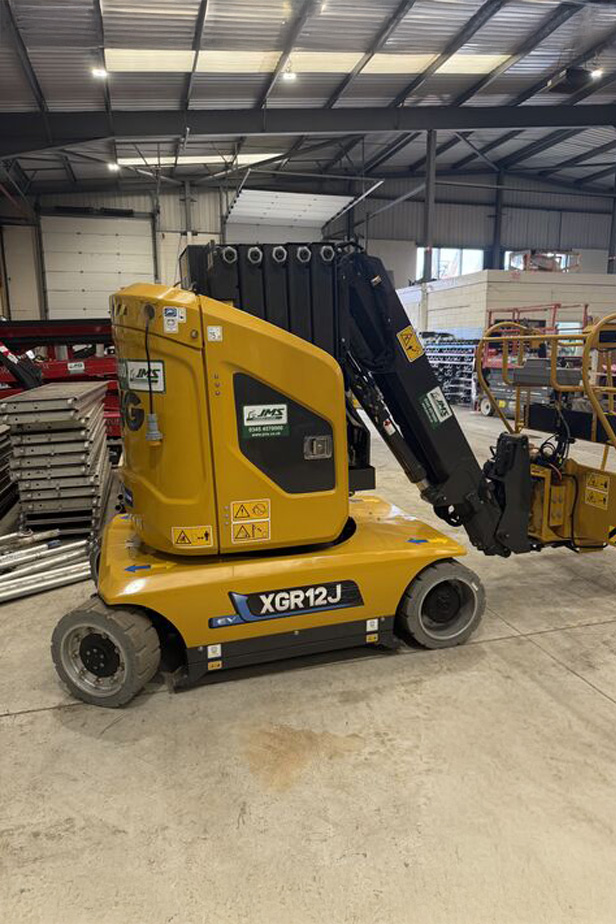

The XCMG XGR12J is a compact electric vertical mast lift designed to deliver exceptional reach and manoeuvrability where space is at a premium.
Combining a 12.7m working height with an articulated jib, the XGR12J offers both vertical access and horizontal outreach, making it ideal for maintenance, installation and construction tasks in confined or obstacle-filled environments.
Its compact footprint and tight turning radius allow operators to work efficiently in warehouses, manufacturing facilities, retail environments and commercial buildings, while the zero-emission electric drive system makes it well suited to indoor applications.
With a platform capacity of 200kg and up to 5.66m of outreach, the XGR12J provides the flexibility needed to access difficult-to-reach areas without compromising on stability or performance.
Specification Overview
| Maximum Working Height | 12.75m |
| Maximum Platform Height | 10.75m |

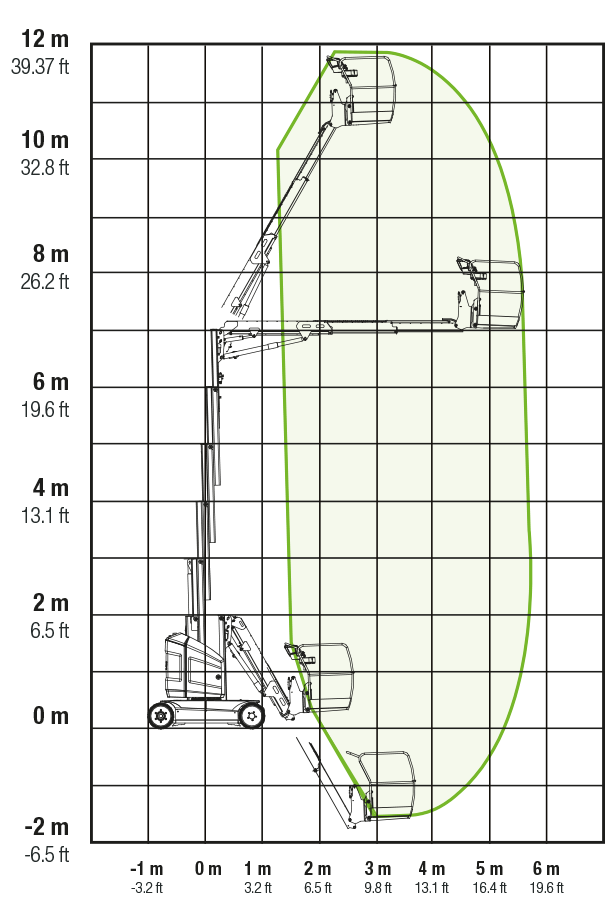

| Maximum Outreach | 5.66m |
| Overall Width | 1.20m |
| Stowed Length | 3.76m |
| Stowed Height | 2.00m |
| Platform Capacity | 200kg |
| Gross Machine Weight | 4980kg |
| Gradeability | 25% |
| Tyres | Non-marking solid |
To hire this machine, or for more information.
0345 457 0000 Contact form
