JLG Liftlux 153–12 – 17.30m – Electric Scissor Lift

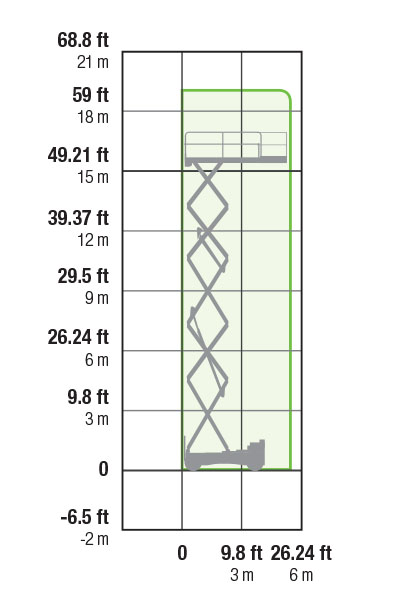

Working Envelope

JLG Liftlux 153-12 Working Envelope

JLG Liftlux 153–12 – 17.30m – Electric Scissor Lift

The JLG Liftlux 153-12 electric scissor is available to hire nationwide from JMS Powered Access.

This electric scissor lift combines a narrow frame with front wheel drive large diameter wheels for superb mobility manoeuvrability.

Key features include:

  • Narrow 1.2m width
  • 15m roll out deck extension for access over obstacles
  • Non marking tyres protect floor finishes
  • Travel alarm
  • Proportional drive control

Specification Overview

Maximum Working Height 17.30 m
Maximum Platform Height 15.30m
Overall Width 1.20 m
Stowed Length 4.12m
Stowed Height 2.65m
Platform Capacity 500kg
Gross Machine Weight 7,300 kg
Gradeability 25%
Tyres solid rubber - non marking
Overall Length 4.12m
Deck Extension 1.49m
