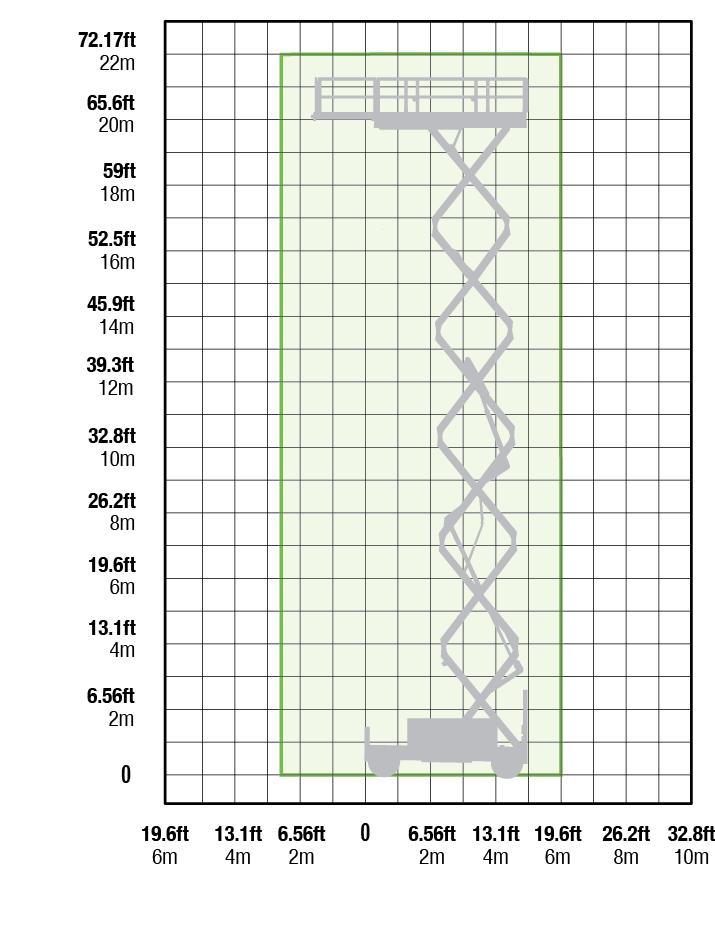

Working Envelope

Dingli JCPT 2223 RTB – 22m – Diesel Scissor Lift

The Dingli JCPT 2223 RTB diesel scissor lift is available to hire nationally from JMS Powered Access.

The Dingli JCPT 2223 RTB is a self-propelled rough terrain scissor lift with a safe working load of 750kg. It has a large platform area which can be extended by 2.70m. It can take a maximum of 4 occupants.
With a ground clearance of up to 0.4m and automatic self leveling, this scissor lift provides stability for working at height on uneven ground.

Features include:

  • 4 wheel drive with a turning radius of 1.25m/3.4m
  • Gradeability of 40%
  • Can be driven at full height
  • Equipped with a special sealed hydraulic drive system

Specification Overview

Maximum Working Height 22m
Maximum Platform Height 20m
Overall Width 2.46m
Platform Capacity 750kg
Gross Machine Weight 13000kg
Gradeability 40%
Tyres 36 x 14-20
Overall Length 4.95m
Deck Extension 2.70m
