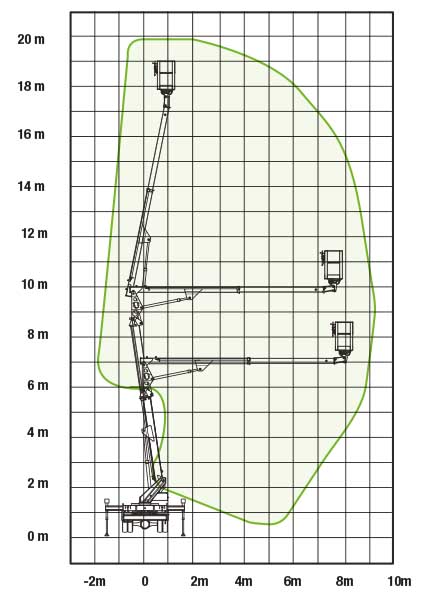

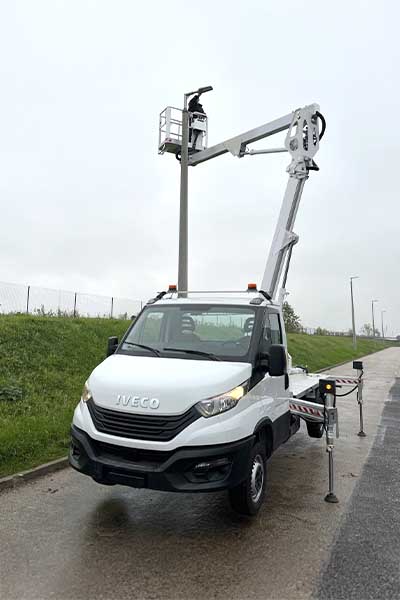

The Multitel HX 200 EX is a versatile 3.5-tonne truck-mounted platform offering a 19.9m working height and 9.6m outreach. Engineered with a rigid aluminium boom and smooth electro-hydraulic controls, it delivers exceptional precision and access for various maintenance and construction tasks.
- Impressive Reach & Capacity: Provides a 19.9m working height and 9.6m horizontal outreach, with a generous 225kg platform capacity.
- Precision Positioning: Features a 380° turret rotation and a self-levelling platform with 65°+65° rotation, allowing operators to bypass obstacles and position precisely at the work area.
- Proportional Controls: Advanced electro-hydraulic controls at both the platform and ground levels ensure smooth operation and accurate, fine-tuned positioning.
- Efficiency-Driven Design: Equipped with a start/stop system in the platform to optimise fuel consumption and reduce noise during operation.
- Robust & Lightweight: The aluminium alloy construction provides rigidity and minimises oscillation, while also reducing the overall vehicle weight for better manoeuvrability.
Available as Self Drive or Operated Hire across the UK.
Specification Overview
| Maximum Working Height | 19.90m |
| Maximum Platform Height | 17.90m |
| Maximum Outreach | 9.60 m (225 kg) |
| Stowed Height | 2.6m |
| Platform Capacity | 225kg |
| Platform Dimensions | 1400x700mm |
| Machine Weight | 3,250kg |
