JLG X15J Plus – 15.40m Spider Boom

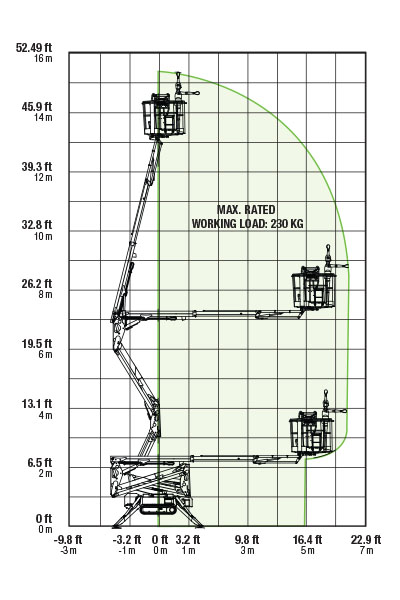

Working Envelope

JLG X15J Working Envelope

JLG X15J Plus – 15.40m Spider Boom

The JLG X15J Plus is a compact crawler or tracked boom from one of the World’s largest access manufacturers.

Launched in 2017, JMS wasted no time to add them to their tracked boom hire fleet.

The JLG X15 J provide economic performance with minimal emissions and noise pollution as well as quick set up auto levelling outriggers that enable you to set up in minutes.

This X 15 track boom has low overall weight and tracks that spread the weight enable the X15J plus to be used in more sensitive environments as well as transported easily.

Specification Overview

Maximum Working Height 15.40m
Maximum Outreach 6.60m
Overall Width 1.48m
Stowed Length 4.02m (with Basket)
Stowed Height 1.99m
Platform Capacity 230kg
Gross Machine Weight 1910kg
Gradeability 28.7%

To hire this machine, or for more information.

   0845 457 0000      Contact form

Features

  • 0.69 m x 1.34 m Aluminium 2 person platform
  • Slide bar rear entry
  • Footswitch
  • Full proportional control
  • Articulating jib
  • Powered platform rotator (124°)
  • Remote Control (via cable to platform)
  • Full Remote Control of drive and stabilization
  • Multi-lingual LCD display on platform console
  • Platform console position sensor and lock
  • Envelope management load sensing system
  • Platform designed for ease of removal/ changeover with casters
  • AC Cable to platform
  • 6.5 mm Airline to platform
  • 12.6 mm Waterline to platform
  • Engine protection
  • Rubber Outrigger Pads
  • Cylinder Rod Protection on Outriggers
  • Automatic cut-out when out of level
  • Powered track extensions/retraction
  • 360° non-continuous turntable rotation
  • Turntable alignment sensor and gauge
  • Three emergency descent systems
  • Electro-hydraulic controls
  • Full pressure hydraulic controls
  • Lifting/Tie down points
  • Forklift Pockets
