Hinowa Lightlift 20.10 – 20m Spider Boom Lift

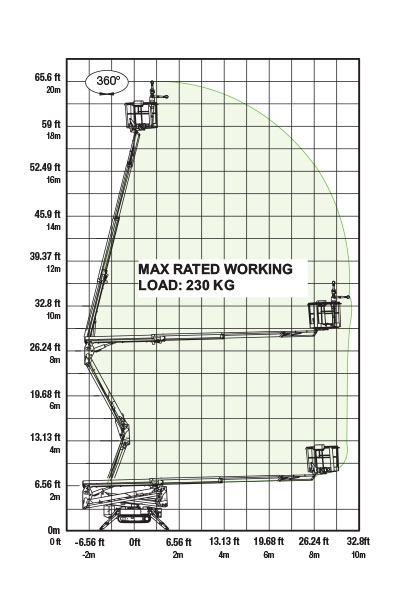

Working Envelope

Hinowa LL20.10 Working Envelope

Hinowa Lightlift 20.10 – 20m Spider Boom Lift

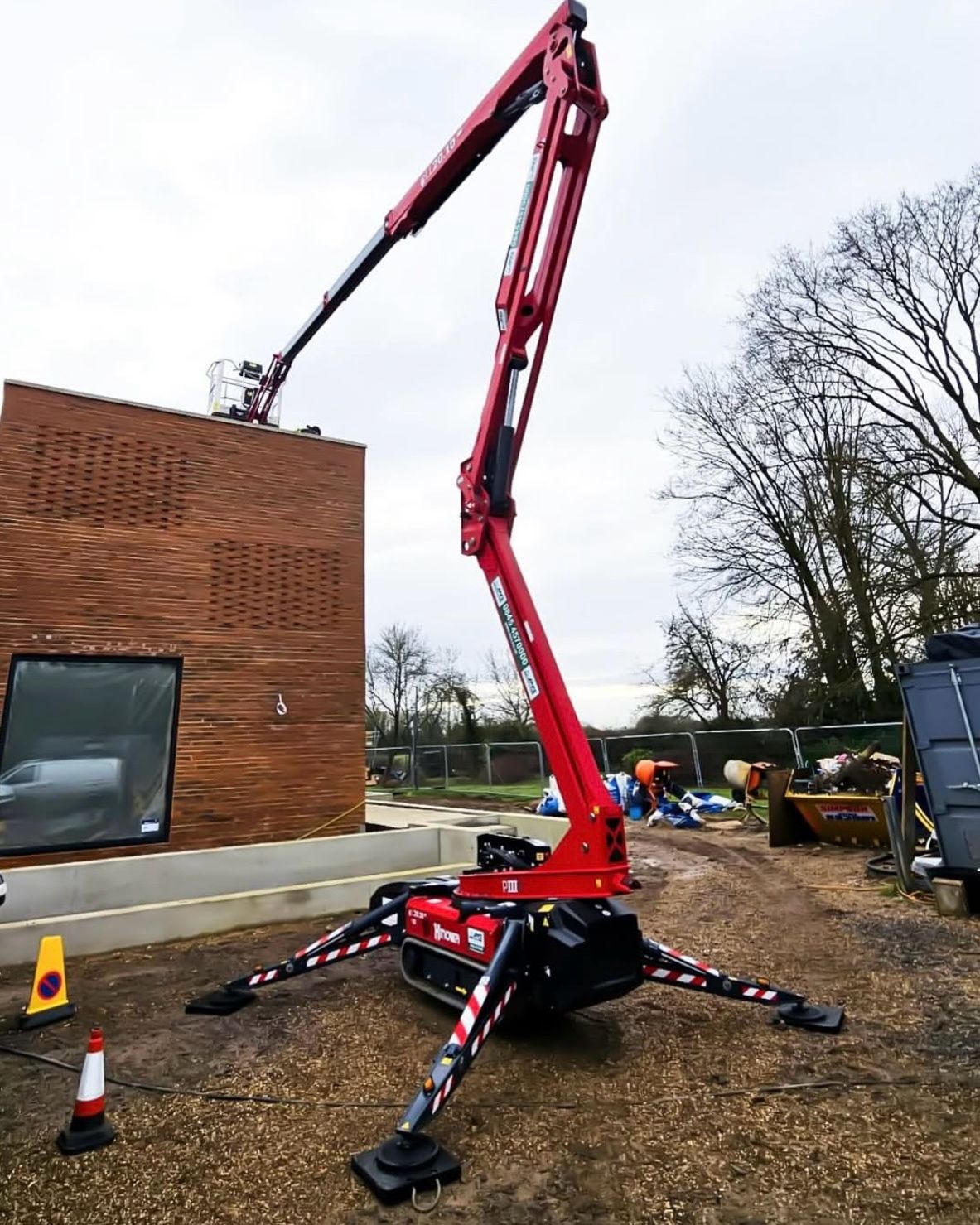

The Hinowa LL 20.10 Spider Boom is available to hire nationwide from JMS.

The new jib performance from the Hinowa LL20.10 Light Lift spider boom lift allows it to work in every condition with two operators with 230 kg weight.
This increases the productivity as the operator can carry the necessary tools for the job. It also keeps the relation between load capacity the machine’s weight extremely safe whilst the spider lift is in use.

The Hinowa LL20.10 spider boom is available as diesel or lithium powered. Lithium batteries allow for indoor use in emission-restricted environments.

This tracked spider boom is suitable for a wide range of challenging outdoor environments that present rough or unstable ground. It also has excellent gradeability.

Specification Overview

Maximum Working Height 20.15m
Maximum Platform Height 18.15m
Maximum Outreach 9.70m
Overall Width 1.3m
Stowed Length 5.01m
Stowed Height 1.99m
Platform Capacity 230kg
Gross Machine Weight 2950kg
Gradeability 16°/28.7%

To hire this machine, or for more information.

   0845 457 0000      Contact form
