Genie GS4069 RT – 14.2m – Diesel Scissor Lift

Features

Diesel
Rough Terrain

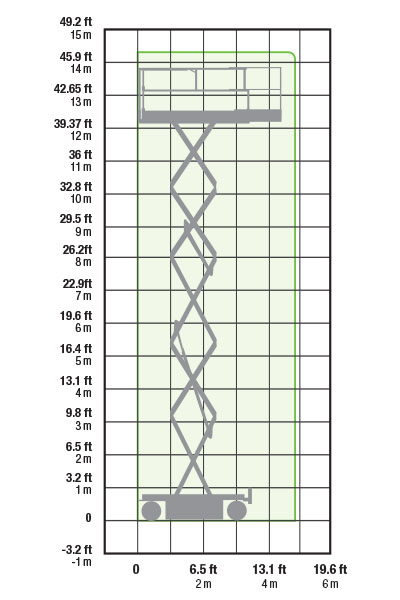

Working Envelope

Genie GS4069RT Working Envelope

Genie GS4069 RT – 14.2m – Diesel Scissor Lift

Genie Scissor Lift Hire – The Genie GS4069 RT is available to hire nationwide from JMS Powered Access.

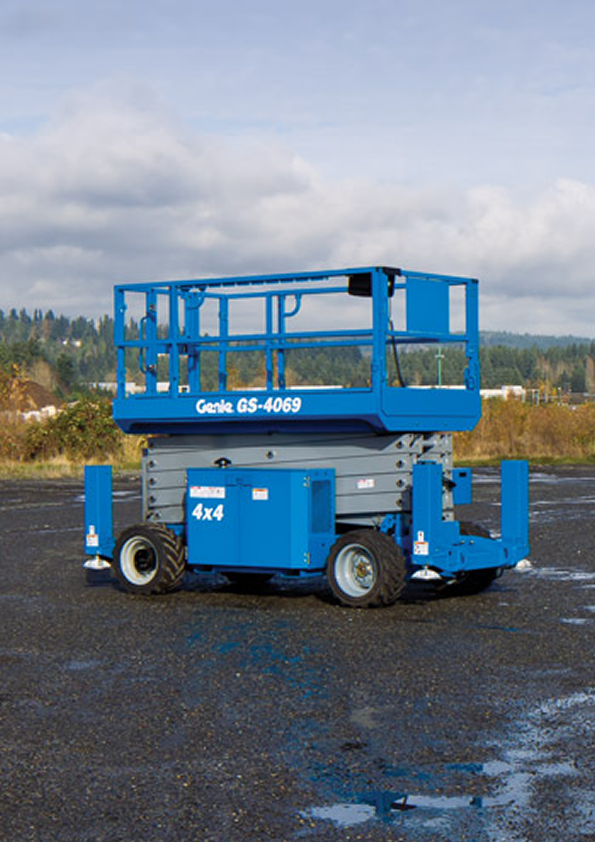

The Genie GS4069 RT diesel scissor lift is built to increase operator productivity on demanding outdoor worksites. It’s foam filled, rough terrain tyres make it easy to traverse uneven ground. It has a working height of 14.12m can be driven when fully elevated.

Key features include:

  • Patented full-time oscillating axle automatically adjusts the axle position based on ground conditions
  • AC power drive system for outsting worksite performance lower energy consumption
  • 35% gradeability for demanding outdoor worksites
  • Industry’s first 14,12 m (46 ft 3 in) full drive height unit in its class
  • Large platform workspace with 1.52 m (5 ft) slide-out extension deck
  • Swing out components trays for easy access
  • User-friendly Smart Link™ control diagnostic system

Specification Overview

Maximum Working Height 14.12m
Maximum Platform Height 12.12m
Overall Width 1.75m
Stowed Length 3.12m
Stowed Height 2.74m
Platform Capacity 363kg
Gross Machine Weight 4744kg
Gradeability 35%
Tyres Rough Terrain
Overall Length 2.79m
Deck Extension 1.52m

To hire this machine, or for more information.

   0845 457 0000      Contact form
