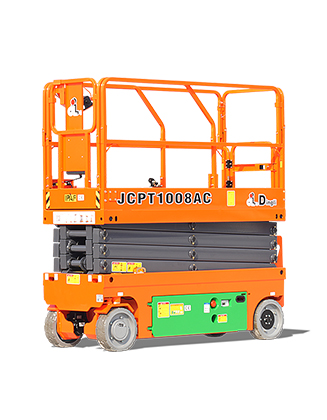

Dingli JCPT1008AC – 10m – Electric Scissor Lift

Features

Emission Free
Lightweight in Class

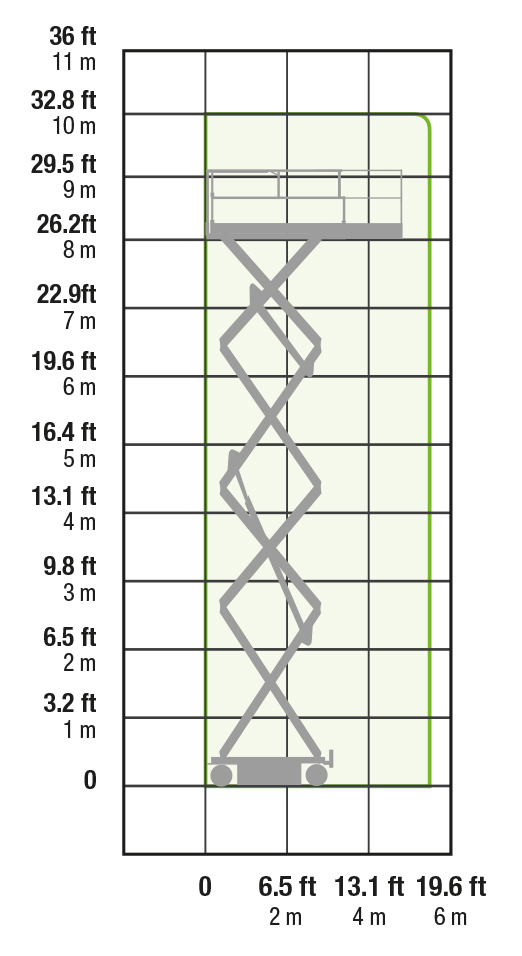

Working Envelope

Dingli JCPT1008AC -  scissor lift working envelope

Dingli JCPT1008AC – 10m – Electric Scissor Lift

The Dingli JCPT1008AC is available to hire nationwide from JMS.

Its compact 0.83m wide chassis provides a maximum working height of 10m along with ample space and 230kg capacity for 2 operatives plus tools and equipment.

As an all-electric (battery) scissor lift – there are no emissions in operation and low noise makes it suitable for indoor applications

In addition – this Dingli scissor lift has battery drive with full AC system drive and lift – no hydraulic components

25% gradeability enables it to tackle slopes and ramps. Roll out deck extension provides additional platform area.

Contact JMS today for scissor lift hire

Features include:

  • Drivable at full height
  • Tilt alarm with drive & lift cut-out
  • All motion audible alarm
  • Operator horn
  • Forklift pockets and tie down
  • Overload sensing system

Specification Overview

Maximum Working Height 10m
Maximum Platform Height 8m
Overall Width 0.83m
Stowed Height 2m
Platform Capacity 230kg
Gross Machine Weight 2,230kg
Gradeability 25%
Tyres 381×127mm - 12 non-marking
Overall Length 3.3m
Deck Extension 1.2m
