Skyjack SJ30 ARJE

Features

Working Envelope

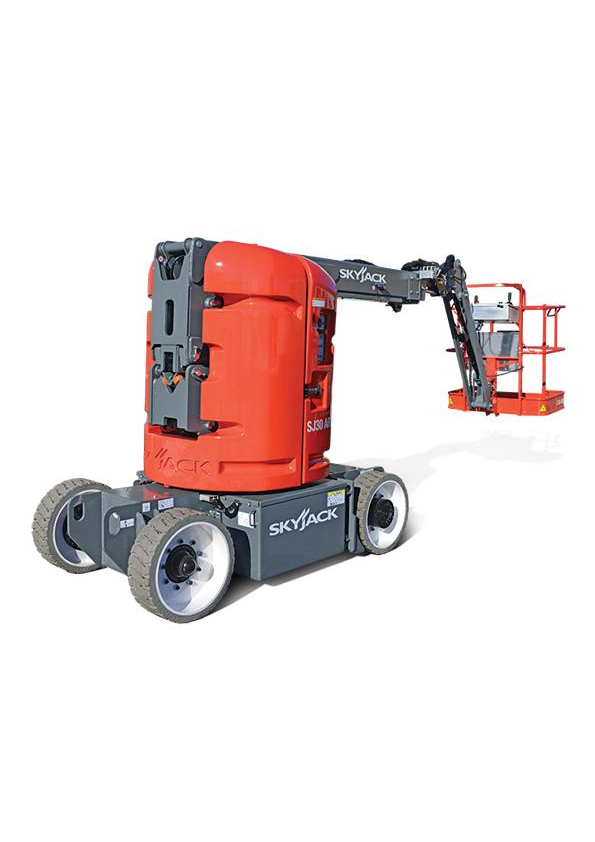

Skyjack SJ30 ARJE

The SJ30 ARJE is Skyjack’s first electric boom and the first boom to feature a rotating jib, and to have a direct electric AC drive.

Perfect for tight spaces, the SJ30 ARJE comes in it at just 1.19m (47 in) wide and features a working height of 11m (36 ft), up-and-over clearance of 4m (13.1 ft), a 1.55m (61 in) turning radius and maximum weight capacity of 227kg (500 lbs).

A lot of manufacturing and warehouse facilities have narrow and confined spaces that require up-and over access. With its narrow dimensions and zero tailswing, the SJ30 ARJE is ideally suited for their needs.

The SJ30 ARJE offers 35% gradeability to make navigating jobsites, as well as loading and unloading from a trailer, a lot easier.

It has exceptional duty-cycle performance.

Specification Overview

Maximum Working Height 11m
Maximum Platform Height 9m
Maximum Outreach 6.25m
Overall Width 1.19m
Stowed Length 5.44m
Stowed Height 2.01m
Platform Capacity 227kg
Gross Machine Weight 5750kg
Gradeability 35%
Tyres non-marking solid

To hire this machine, or for more information.

   0845 457 0000      Contact form

Features

STANDARD FEATURES

  • Rotating jib (SJ30 ARJE only)
  • Direct AC electric drive
  • Dual spring applied, electromagnetically released brakes
  • Regenerative braking
  • Speed and angle sensing traction control
  • 48V 305 Ah battery pack
  • 28 mph (12.5 m/s) wind rating
  • DC powered emergency lowering
  • Secondary guarding electrical (SGE)
  • Drivable at full height
  • 355° Non-continuous turret rotation
  • 35% Gradeability
  • Swing out battery trays
  • Swing out cowlings
  • Modular platform railing system
  • Rear-entry sliding mid rail
  • 110V AC outlet on platform with GFI
  • Direction sensing drive and steer controls
  • Proportional drive and boom controls
  • Function speed selector
  • Relay based control system
  • Color coded and numbered wiring
  • Hourmeter
  • Operator horn
  • All motion alarm
  • Tie down/lifting lugs
  • 22 x 7 x 12 solid rubber, non-marking tires
