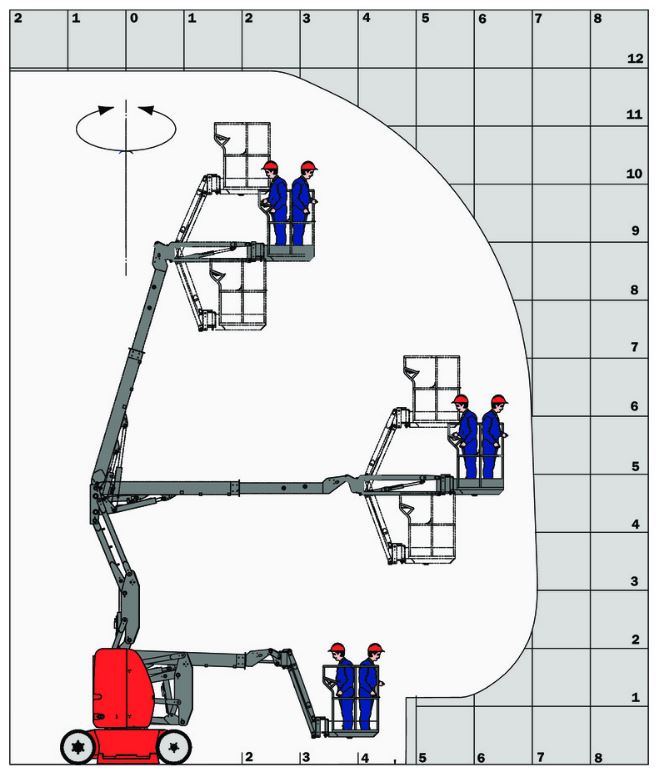

Working Envelope

Genie Z33-18 Working Envelope

Manitou 120 AETJ-C – 11.95m Boom Lift

The Manitou 120 AETJ-C is available to hire nationwide from JMS Powered Access.

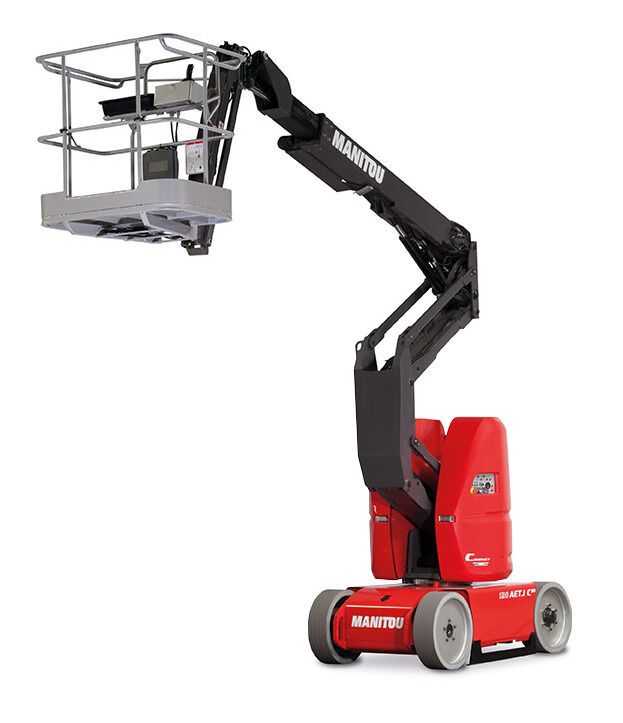

The Manitou 120 AETJ-C is an all electric articulated boom lift. It’s suited to the requirements of industry professionals for all types of maintenance jobs that require working at height. The platform can accommodate 2 operators with a platform capacity of 200kg maximum.

Specification Overview

Maximum Working Height 11.95m
Maximum Platform Height 9.95m
Maximum Outreach 7m
Overall Width 1.20m
Stowed Length 3.74m
Stowed Height 2.16m
Platform Capacity 200kg
Gross Machine Weight 6660kg
Gradeability 25%
Tyres Solid non-marking
Overall Length 5.48m
Ground Clearance 0.10m
Overall Height 1.99m
