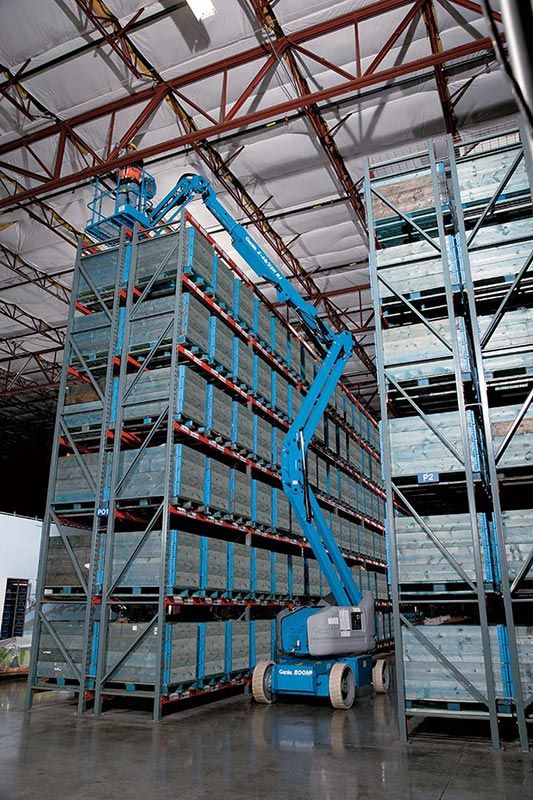

Genie Z40/23N – 14.32m – Electric Articulated Boom Lift

The Genie Z40/23N articulated boom lift is available to hire nationally from JMS Powered Access.

The Genie Z40/23N electric boom lift offers compact dimensions and quiet, emission-free operation thanks to its eco-friendly AC drive system.
Operators can easily drive this narrow electric boom lift through standard double doorways, work close to buildings or around obstacles and access overhead work from aisles and other congested areas.

Key features:

  • Minimal tailswing, tight turning radius and compact dimensions for easy manoeuvring in confined job sites
  • Compact chassis for narrow aisle access
  • 30% gradeability and 7.2 km/h (4.5 mph) travel speed for excellent drive performance
  • AC drive system for enhanced driving performance and simplified maintenance
  • Articulating 1.22 m (4 ft) jib with a 128° range of motion to accurately position workers
  • 180° hydraulic platform rotation and self-leveling platform for easy operation

Specification Overview

Maximum Working Height 14.32m
Maximum Outreach 6.91m
Overall Width 1.50m
Stowed Length 6.53m
Stowed Height 1.98m
Platform Capacity 227kg
Gross Machine Weight 6908kg
Gradeability 30%
Tyres Solid, non-marking
Ground Clearance 0.24m

To hire this machine, or for more information.

   0845 457 0000      Contact form
