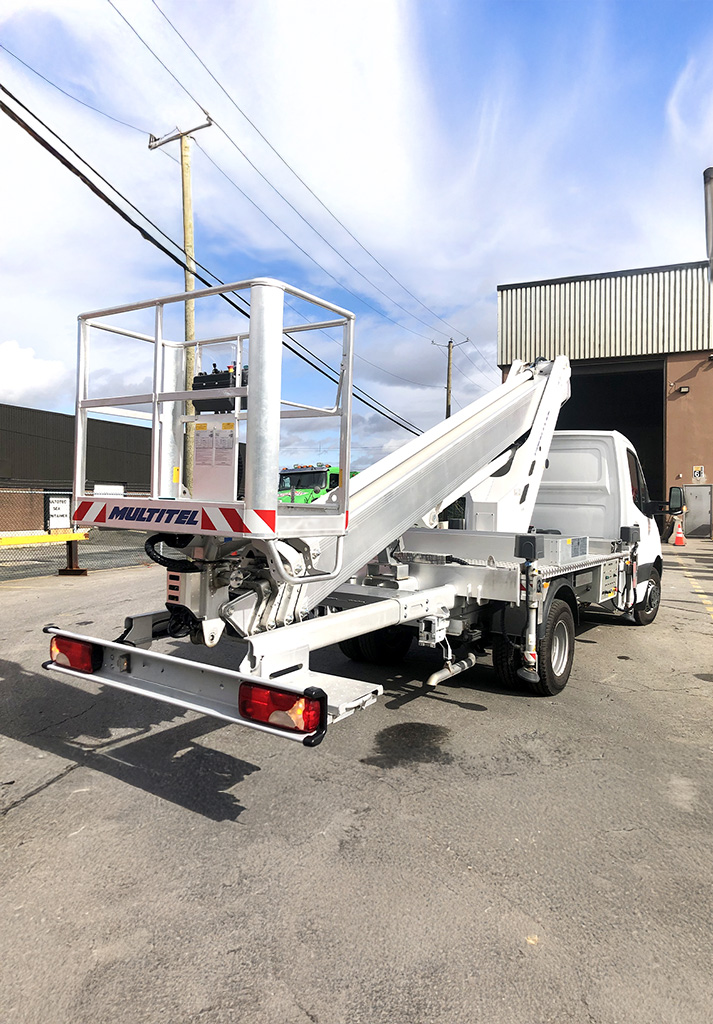

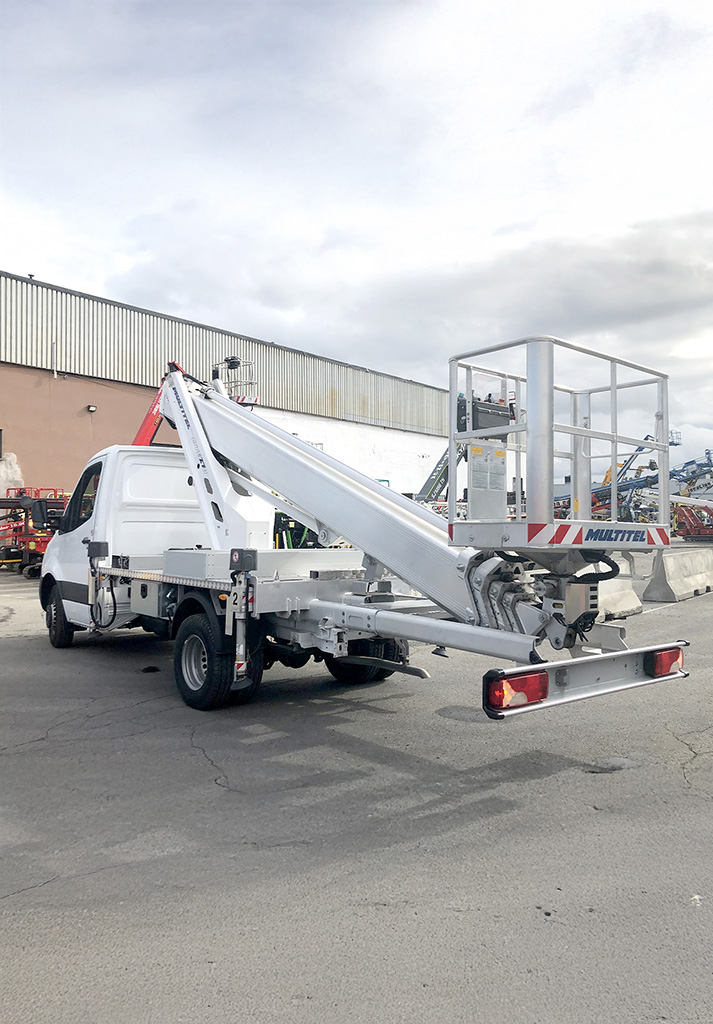

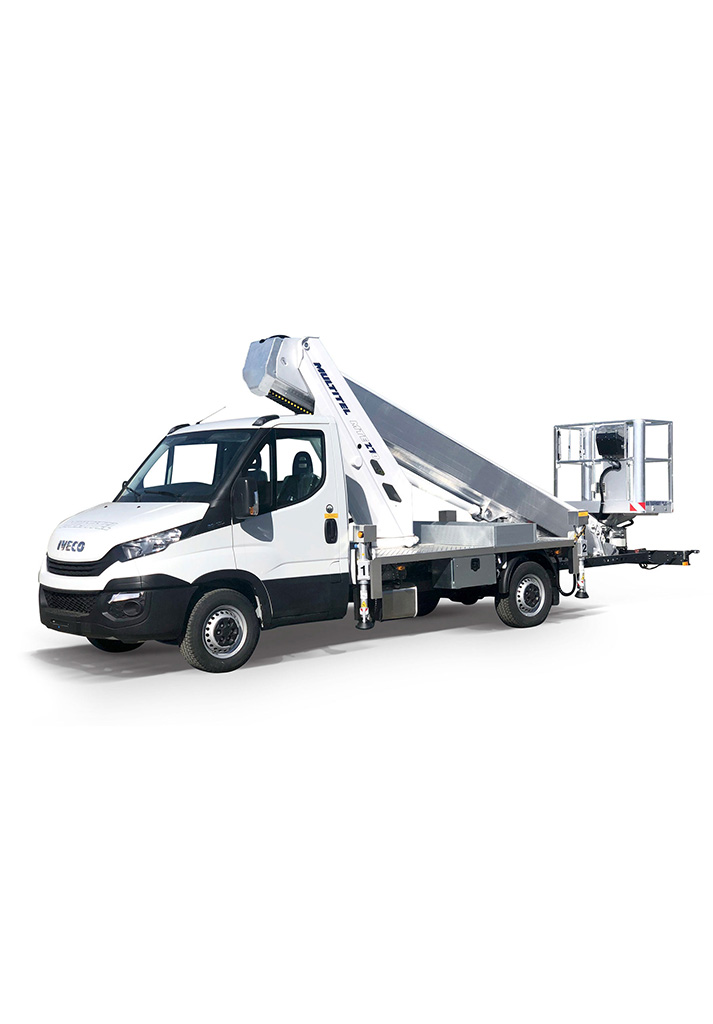

Multitel MTE 270 EX- 27m Truck Mounted Boom

Telescopic aerial platform mounted on a 3.5-ton truck, with maximum working height of 27m.

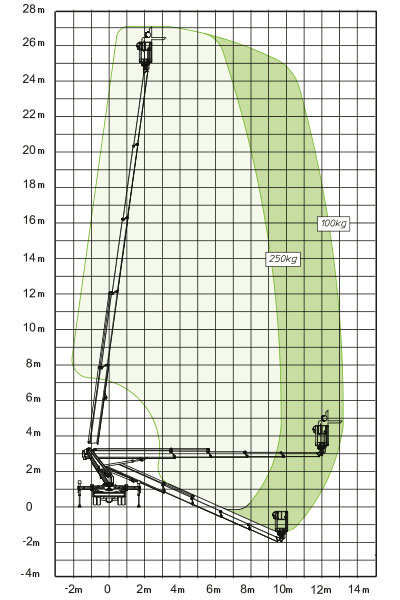

At its maximum horizontal outreach of 17 metres, the platform’s capacity is 100kg, rising to 250kg at 12.30m outreach.

The 400° rotation of the turret and the 1.4m x 0.7m self-levelling platform able to turn 90°+90° mean that the operator get around any obstacles and be positioned precisely at the work area.

The stabilisation and the automatic stowage make the Multitel MTE 270 EX an extremely easy machine to use.

This Multitel truck mount is largest of our self-drive fleet.

Also available with a fully qualified operator.

Specification Overview

Maximum Working Height	27m
Maximum Platform Height	25m
Maximum Outreach	17 m (100 kg), 12,30 m (250 kg)
Overall Width	2,100mm
Stowed Length	7,690mm
Stowed Height	2,980mm
Platform Capacity	250kg
Gross Machine Weight	3,500kg
Platform Dimensions	1,4 x 0,7 m x 1.1m
