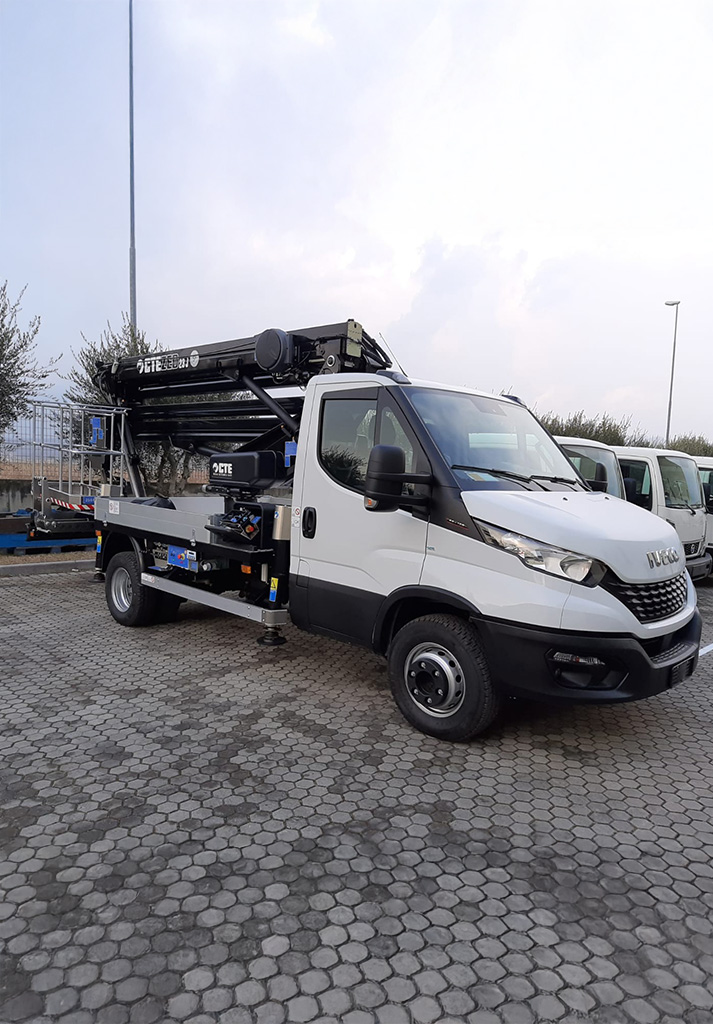

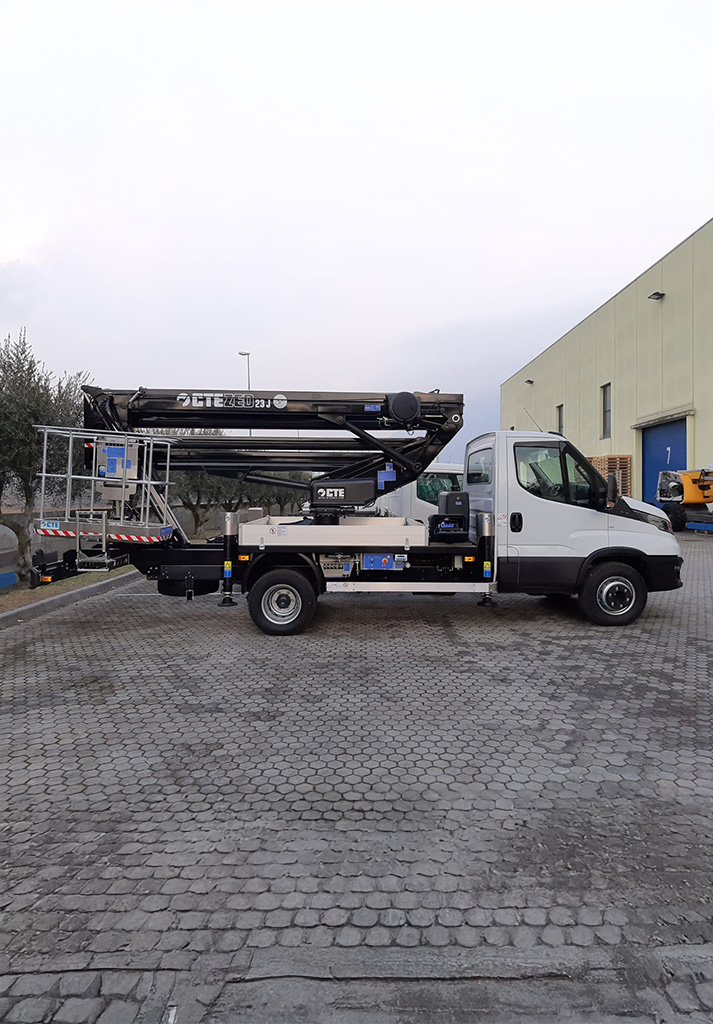

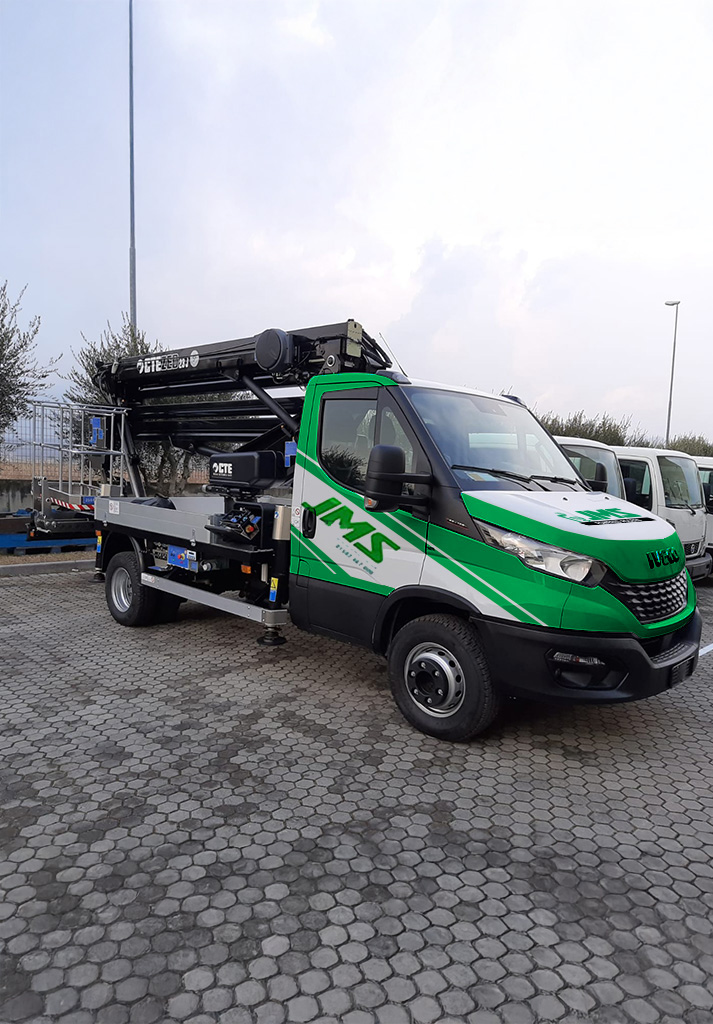

This 23m truck mount has a flexible double pantograph boom that provides excellent efficient access to large flat work areas at height.
Available for hire across the UK for self-drive or operated hire
Key Features
- Double pantograph + telescopic boom with single extension + jib
- Sigma boom movement enabled by connecting rods
- ±320° turret rotation
- Smooth proportional simultaneous controls with acceleration and deceleration ramps
- Engine start and stop controls from basket and ground
- Automatic engine rpm management
- Anti-slip aluminium deck
- Basket in aluminium 1400x700x1100 mm
- 90° + 90° hydraulic basket rotation
- Automatic hydraulically actioned basket levelling
- 4 hydraulic outriggers with straight down stabilization
- Working area managed by S3 Smart Stability System
- CAN BUS electronic management system
- Working area managed by S3 Smart Stability System
- Diagnostic display
- Home function
- Load cell
Specification Overview

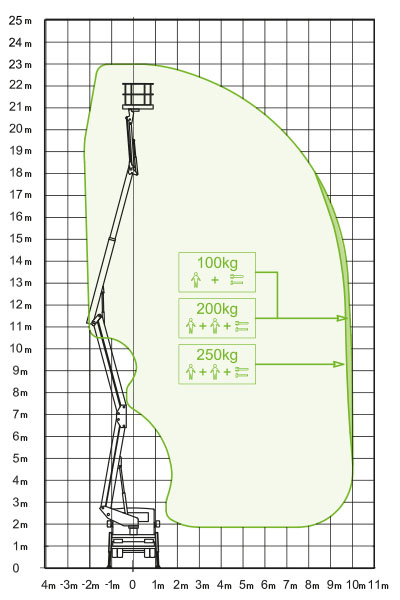

Maximum Working Height | 23m |
Maximum Platform Height | 21m |
Maximum Outreach | 10m |
Overall Width | 2,243mm |
Stowed Length | 7,497mm |
Stowed Height | 2,862mm |
Platform Capacity | 250kg |
Platform Dimensions | 1400 x 700 x 1100mm |
To hire this machine, or for more information.
0345 457 0000 Contact form
