CTE ZED 21.3JHL – 21.30m Truck Mounted Boom

Features

Diesel

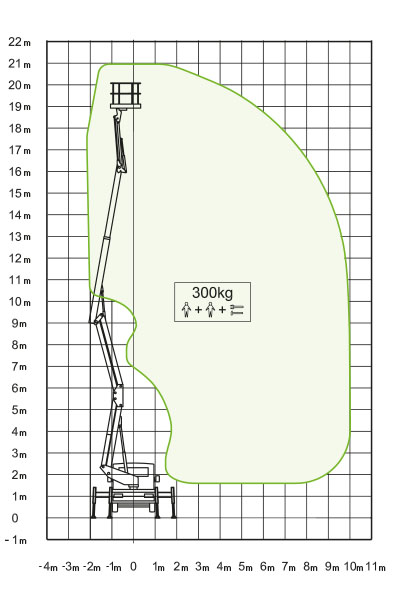

Working Envelope

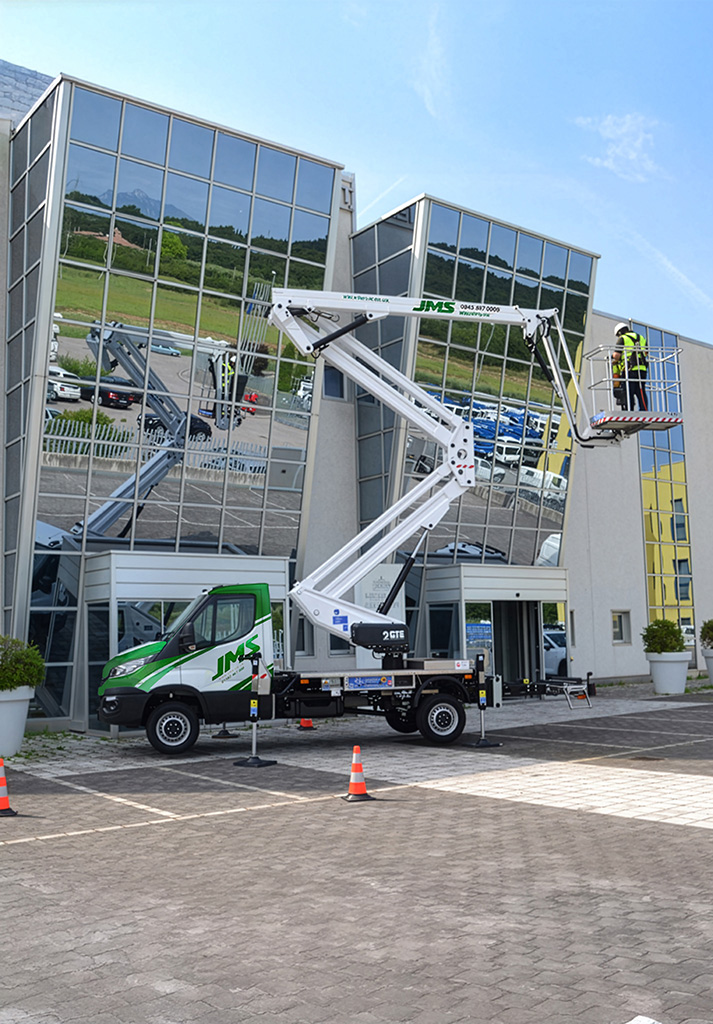

CTE ZED 21.3JHL – 21.30m Truck Mounted Boom

Versatile 21m Iveco chassis truck mount available for self drive or operated hire across the UK

Key Features

  • Double pantograph + telescopic boom with single extension + jib
  • Sigma boom movement enabled by connecting rods
  • ±120° turret rotation
  • Proportional, simultaneous electrohydraulic controls from basket and ground
  • Engine start and stop controls from basket and ground
  • Anti-slip aluminium deck
  • Basket in aluminium 1400x700x1100 mm
  • 90° + 90° hydraulic basket rotation
  • Automatic hydraulically actioned basket levelling
  • 4 hydraulic outriggers with ground pressure sensors: front stabilizers always extended and rear stabilizers in shape

Specification Overview

Maximum Working Height 21m
Maximum Platform Height 19m
Maximum Outreach 10m
Overall Width 2,249mm
Stowed Length 7,417mm
Stowed Height 2,795mm
Platform Capacity 300kg
Gross Machine Weight 3,500kg
Platform Dimensions 1400 x 700 x 1100mm
