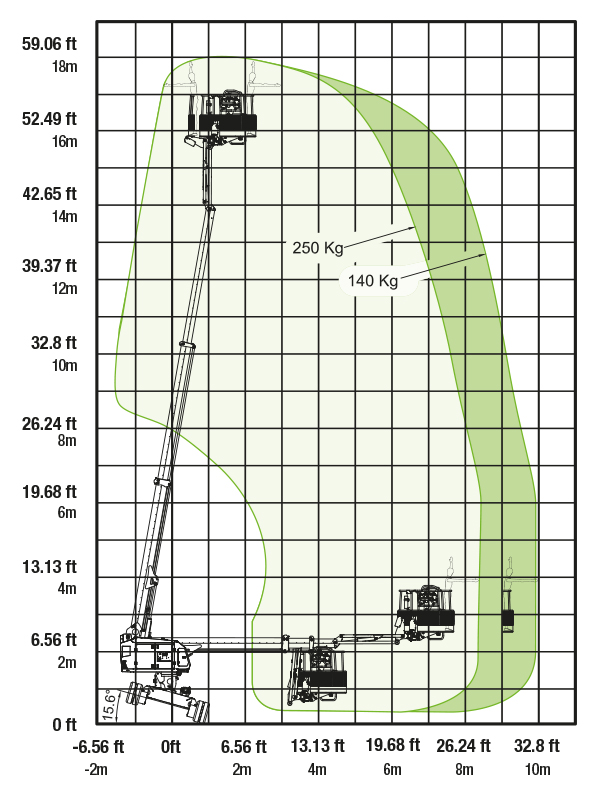

The JIBBI 1890 Evo crawler boom lift has a 17.90m maximum working height and a maximum outreach (with 140kg load) of 9.92m.
It’s platform capacity is 250kg, with a corresponding maximum outreach (at max load) of 8.32m, is sufficient for two operatives plus tools and equipment and has a spacious platform area of 1.8 x 0.7m.
Packed with advanced tracked boom lift technology, the JIBBI 1890 EVO has
- It can safely be driven up to 14m and on 15° lateral and longitudinal inclination
- Dynamic and proactive automatic leveling – for operation on uneven ground or slopes (25% gradability)
- Safe- Lock system helps prevent the crawler from escaping from tensioning wheels
- AES anti-entrapment system – designed to prevent serious injury by stopping the unit when the operator is crushed against it.
- Ultrasonic anti-collision system –secondary guarding
This crawler boom is part of a comprehensive tracked boom lift range available for hire across the UK
Specification Overview
| Maximum Working Height | 17.90m |
| Maximum Platform Height | 15.90m |
| Maximum Outreach | 8.32m (9.92m 140kg) |
| Overall Width | 2200mm (stowed) |
| Stowed Length | 5860mm |
| Stowed Height | 2160mm |
| Platform Capacity | 250kg |
| Gross Machine Weight | 6050kg |
| Gradeability | 25° |
| Tyres | Tracked |
| Platform Dimensions | 1.8 x 0.7 m |
To hire this machine, or for more information.
0345 457 0000 Contact formPlease note: Video illustrates a different power version of the Almac Jibbi 1890
