SkyJack SJ63AJ – 21.38 Diesel Boom Lift

Features

Diesel
Rough Terrain

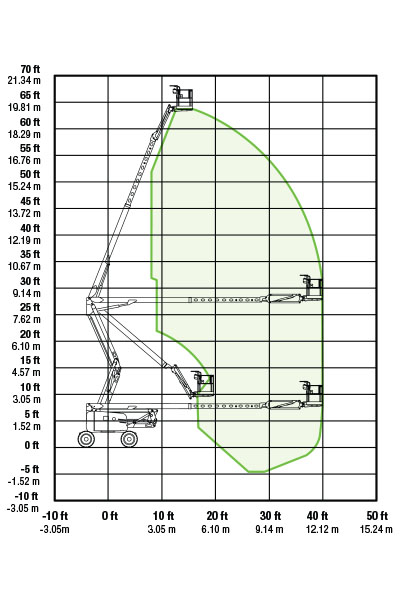

Working Envelope

sj63aj working envelope

SkyJack SJ63AJ – 21.38 Diesel Boom Lift

Combining a working height of 21.38m, a horizontal reach of 12.2m, and an up and over clearance of 8.4 m, Skyjack’s SJ63 AJ is designed for versatility.

Superior positive traction terrain ability is provided by the axle based 4WD used in many of Skyjack’s product designs, which accounts for a proven low maintenance, rugged and reliable drive train.

360 degree turret rotation and zero tail swing allow for flexible operation in tight locations.

The SJ63 AJ features a unique open center knuckle riser design for improved visibility, compact dimensions, below grade reach capabilities.

Dual lifting cylinders provide superior comfort stability, while also maintaining true vertical rise which prevents drifting forward or backwards.

Other key features include;

  • Direction sensing drive steer controls
  • Analog based controls
  • Skyjack’s standard colour coded numbered wiring system

Specification Overview

Maximum Working Height 21.38m
Maximum Platform Height 19.38m
Maximum Outreach 12.19m
Overall Width 2.44m
Stowed Length 9.14m
Stowed Height 2.54m
Platform Capacity 227kg
Gross Machine Weight 9979kg
Gradeability 45%
Tyres Foam filled

To hire this machine, or for more information.

  0345 457 0000      Contact form

Features

Axle based 4WD system
Operator controlled locking rear differential
and limited slip front differential
Oscillating axle
Drivable at full height
Straight boom functionality
360° continuous turret rotation
45% Gradeability
Swing out engine tray
Swing up cowlings
Modular platform railing system
Tri-entry sliding mid-rail
Wiring for AC outlet to platform
Direction sensing drive and steer controls
Proportional controls
Relay based control system
Color coded and numbered wiring
Hourmeter
Operator horn
Load sensing system
Tie down/lifting lugs
Wet disc SAHR brakes (front and rear axle)
Grip lug foam-filled tyres
