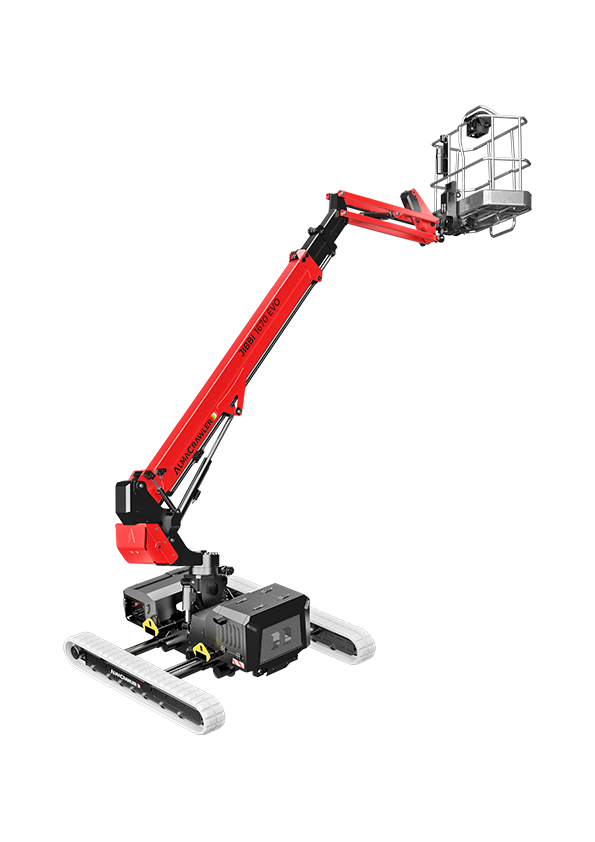

Almac Jibbi 1670 EVO - 16m - Tracked Boom Lift

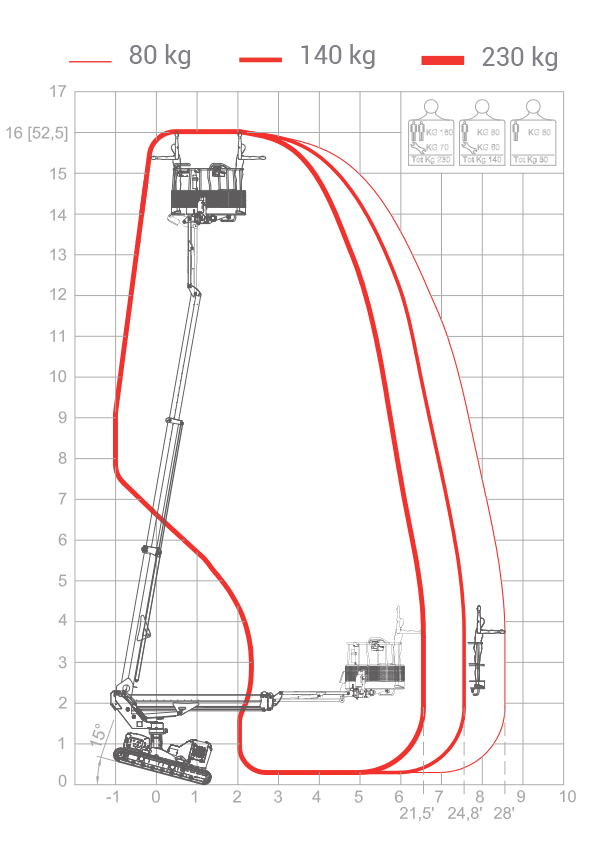

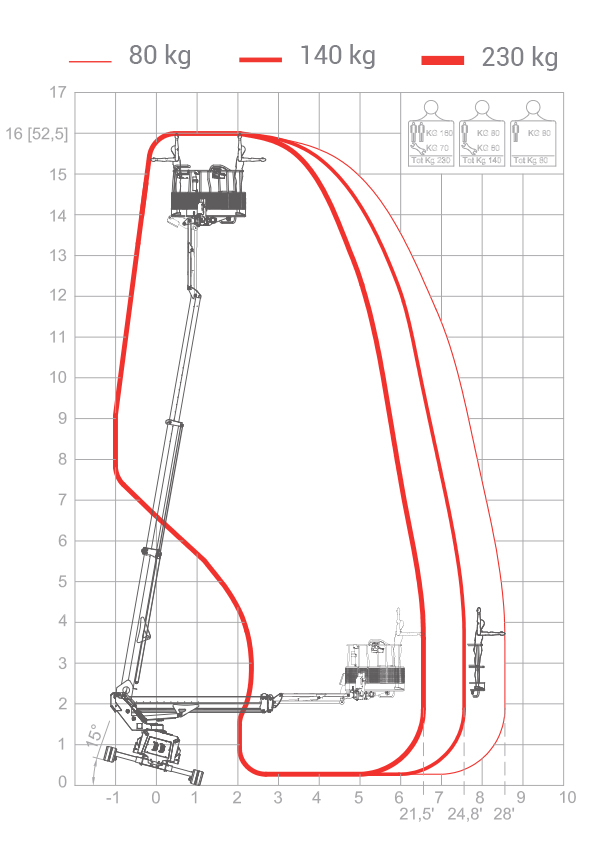

The JIBBI 1670 EVO crawler boom lift has a 16m maximum working height and a maximum outreach (with 80kg load) of 8.5m.

It’s platform capacity is 230kg, with a corresponding maximum outreach (at max load) of 6.7m, is sufficient for two operatives plus tools and equipment and has a spacious platform area of 1.4 x 0.7m.

Packed with advanced tracked boom lift technology, the JIBBI 160 EVO has

variable track undercarriage offering a choice of four track widths of 1.35m to 2.45m – Dynamic Working Performance
Dynamic and proactive automatic levelling – for operation on uneven ground or slopes (25% gradeability)
Safe- Lock system helps prevent the crawler from escaping from tensioning wheels
Ultrasonic anti-collison system –secondary guarding

This crawler boom is part of a comprehensive tracked boom lift range available for hire across the UK

Specification Overview

Maximum Working Height	16m
Maximum Platform Height	14m
Maximum Outreach	6.70m
Overall Width	1950mm (stowed)
Stowed Length	5170mm
Stowed Height	1990mm
Platform Capacity	230kg
Gross Machine Weight	3850kg
Gradeability	25°
Tyres	Tracked
Platform Dimensions	1.4 x 0.7 m
